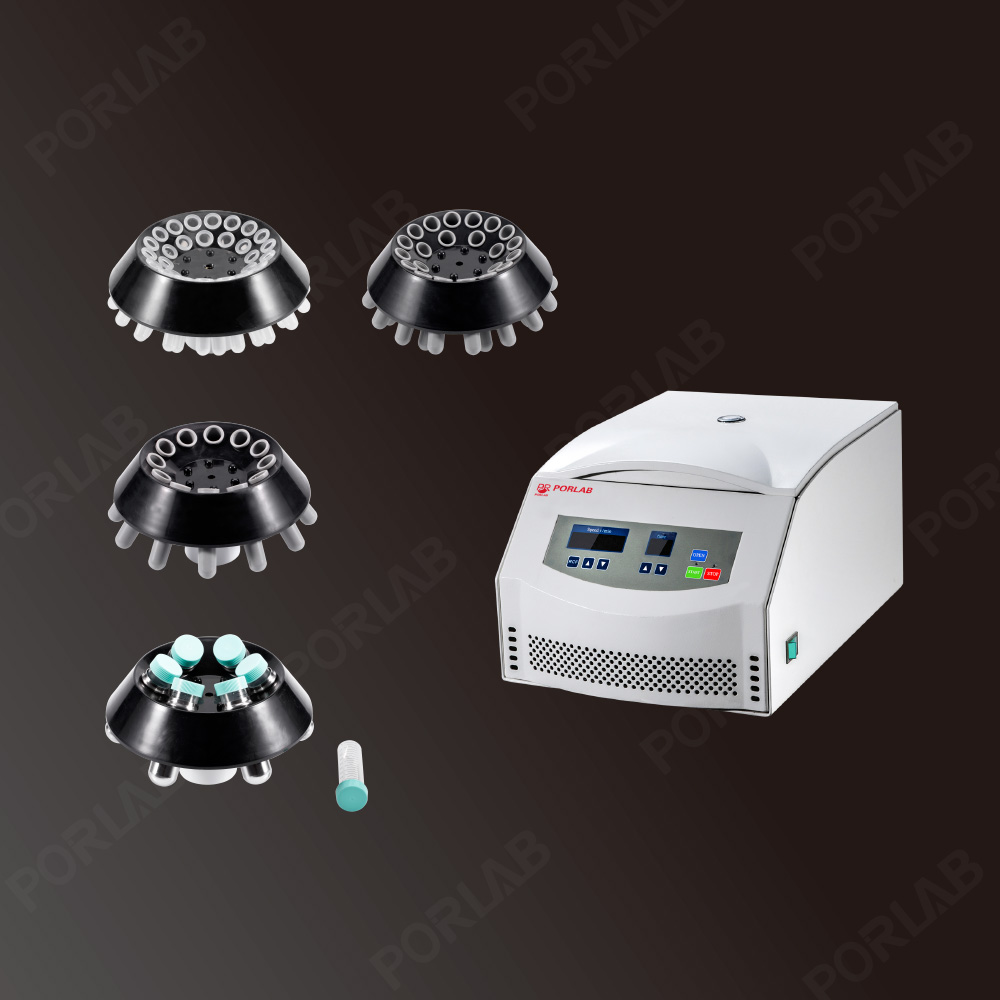

Widely used for qualitative analysis of serum, plasma, urea and etc, for the applications in hospital, blood center, clinical laboratories and etc.
· Compact design
· Microprocessor control
· LCD display of RCF, time and speed
· Brushless motors, maintenance free. No powder pollution
· Flexible axle driven system enables small vibration, smooth & quiet operation, no noise
· Electric lid lock, ideal over-speed and imbalance protection
· Fast speed adjustments
· A wide range of rotors for different application choices
Technical Specification | ||||||||
Max. Speed | 4000rpm | |||||||
Speed Accuracy | 20r/min | |||||||
Max. RCF | 2470xg | |||||||
Max. Capacity | 24×10ml | |||||||
Timer Range | 0~99min | |||||||
RPM/RCF Convert | Yes | |||||||
Noise | ≤55dBA | |||||||
Temperature | Normal | |||||||
Acc/Dec | 10 Kinds | |||||||
Voltage (V/Hz) | AC 220V/110V, 50Hz/60Hz | |||||||
Size(W×D×H) | 485mm×320mm×255mm | |||||||
Net Weight(kg) | 18kgs |
- Matchable Rotors for Choice
Rotor Type | Max Volume | Max Speed | Max RCF | Model No. | P/N |
Angle Rotor | 30×7/5ml | 4000rpm | 2250xg | C1AA | C1AA-1140 |
Angle Rotor | 18×10ml | 4000rpm | 2250xg | C1AA | C1AA-1139 |
Angle Rotor | 24×10/7/5ml | 4000rpm | 2200xg | C1AA | C1AA-1142 |
Angle Rotor | 12×15/10/7/5ml | 4000rpm | 2150xg | C1AA | C1AA-1138 |
Angle Rotor | 8×7/5ml | 4000rpm | 1800xg | C1AA | C1AA-1143 |
Angle Rotor | 6×50ml | 4000rpm | 2100xg | C1AA | C1AA-1141 |
Swing Rotor | 6×10ml | 4000rpm | 2390xg | C1AA | C1AA-1419 |
