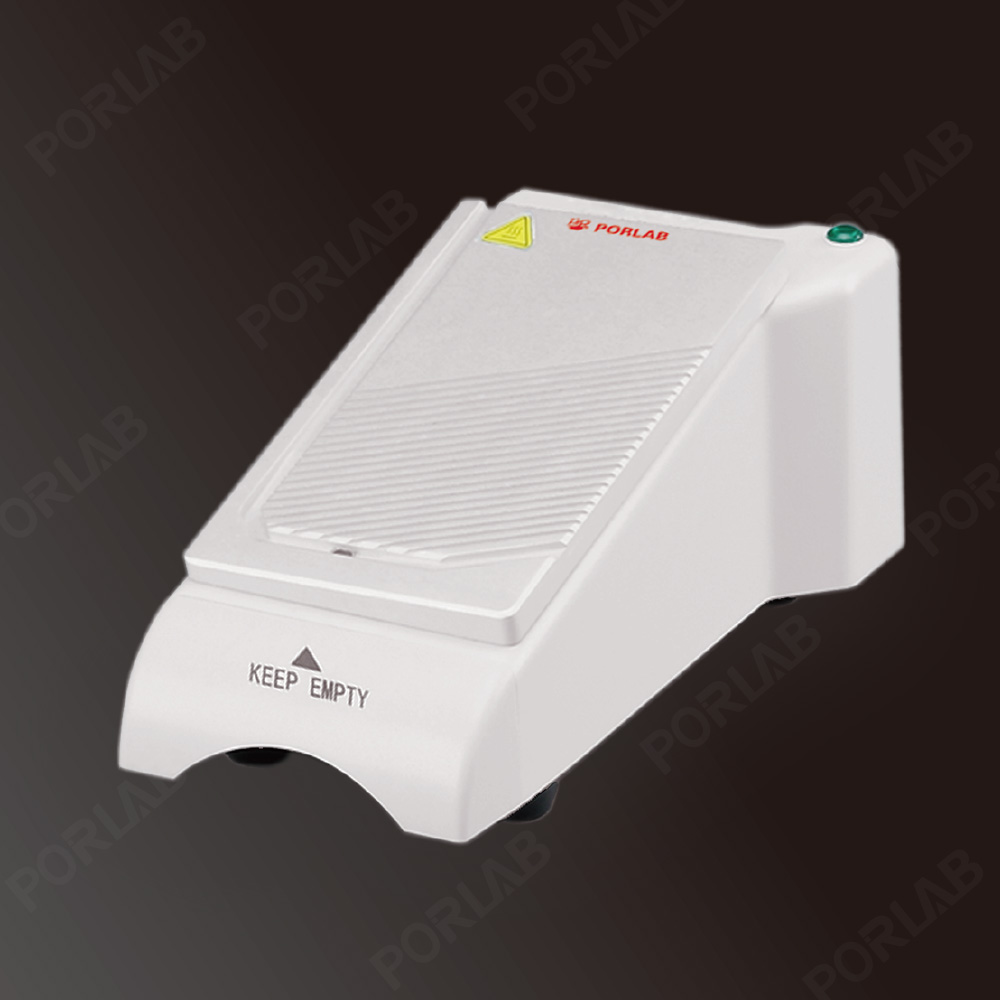

Feature outstanding outer casing and delicately compact design, the wax trimmer TR302 is delivered for offering accurate paraffin block trimming and repairing for high quality microtomy.
· Outstanding outer casing, water-proof, insulated and heatproof
· Built-in micro-processor temperature control system, offers a constant readiness for the trimming processing
· Wide top heating plate allows possible trimming of 5 to 6 blocks at a time, provides with an initial coarse melting for excess wax around blocks
· Low Profile & low gravity center, insures sufficient stability during trimming operations
· Grip-type hand-rest design, delivers convenience and comforts for multiple-block trimming
· Slanted plate surface and shallow grooves of the plate help realize smooth trimming and efficient drainage of excess molten paraffin wax
· Removable drawer-type wax collection box, works with disposable plastic liner, simplifying the collection and disposal of waste wax
· 90 degree side edge makes it possible to realize small block trimming and repairing
P/N | TR302-000 |
Model No. | TR302 |
Dimensions | 285mm×160mm×120mmm |
Net Weight | 1.95kgs |
Voltage | AC220V/110V±10%, 50Hz/60Hz |
Power Rating | 50W |
Surface Temperature | 85℃(±2℃) |
Time to Reach Set Temperature | 5-8mins |
Waste Wax Collection Capacity | 300ml |
Standard Setting | Main Unit×1, Waste Wax Collection Box×1, Wax Disposal Trough×10, Power Cable×1, Manual Instruction×1 |
