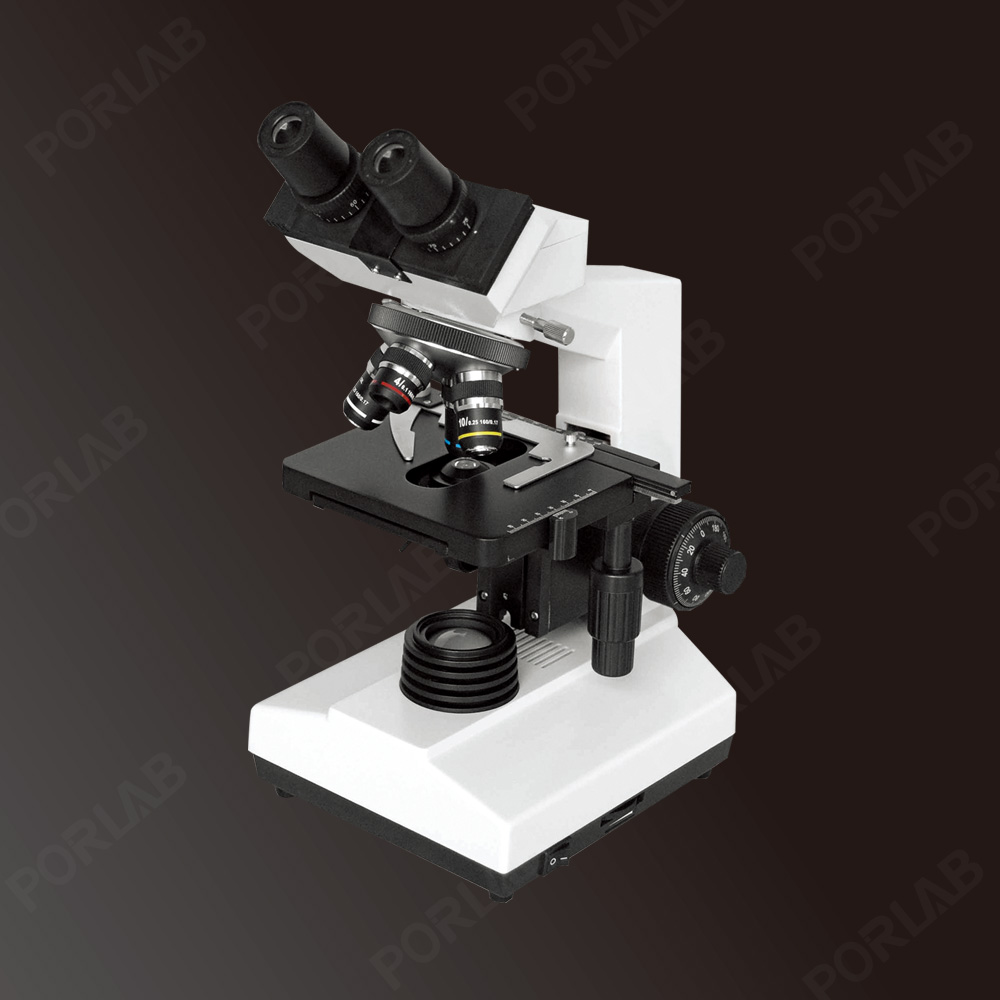

Supplied as a cost-effective reliable solution to meet up with most basic requirements of educational training and routine tasks in life-science laboratories, the BasSET biological microscope features clear imagining, user-friendly and cost-effective characteristics.
· The BasSET biological microscopes are automatically delivered in cartons unless there are any special requirements pre-communicated and agreed at.
●Standard Setting ○Optional Setting
Model Number | XJ107 | XJ107N | ||||||
Viewing Head | Sliding Binocular Head | ● | ● | |||||
Sliding Trinocular Head | ○ | ○ | ||||||
Seidentopf Binocular Head | ○ | ○ | ||||||
Anti-mould | ○ | ● | ||||||
Eyepiece | WF10X | ● | ● | |||||
P16X | ○ | ○ | ||||||
Nosepiece | Quadruple Nosepiece | ● | ● | |||||
Quintuple Nosepiece | ○ | ○ | ||||||
Objective | Achromatic Objective 4X, 10X, 40X, 100X | ● | ● | |||||
Stage | Double-Layer Mechanical Stage 140×140mm / 75×50mm | ● | ● | |||||
Condenser | Abbe NA1.20 with Iris Diaphragm & Filter | ● | ● | |||||
Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm | ● | ● | |||||
Armrest | Black Armrest | ○ | ● | |||||
Rubber Cover | Rubber Cover for Focus Adjustment Knob | ○ | ● | |||||
Illumination | S-LED Illumination, Brightness Adjustable | ● | ● | |||||
Halogen Lamp 100V-240V/6V20W | ○ | ○ | ||||||
Plan-concave Mirror | ● | ● | ||||||
Packaging | Styrofoam | ● | ● | |||||
Carton | ● | ● | ||||||
Wooden Case | ○ | ○ |
