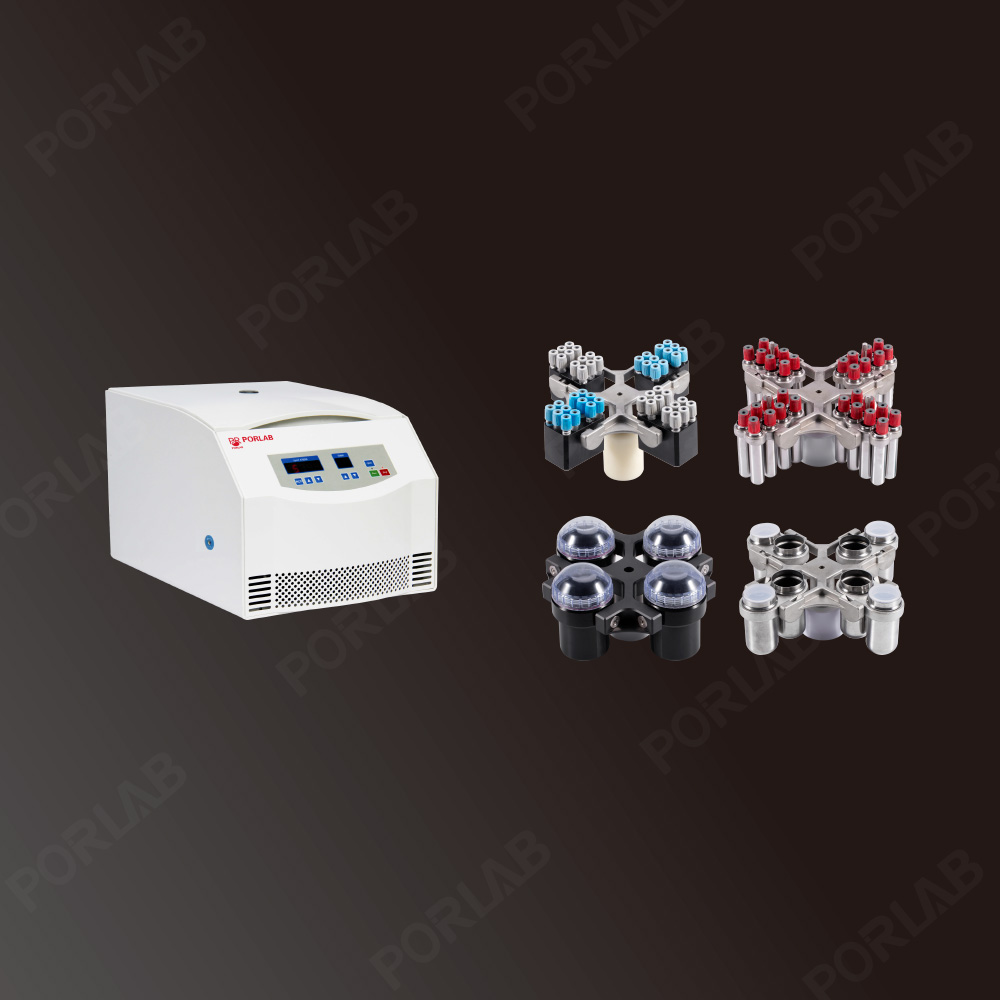

Designed for a wide range of applications in biochemistry, cellular and molecular biology, clinical labs, blood center, high-end research institutes and etc, the universal centrifuges C830 are compatible with various angle rotors and swing out rotors for standard tubes up to 100mL and cups up to 250ml and 6×microplate 48-well and 4×microplate 96-well.
· Microprocessor control
· LCD display of RCF, time and speed. Touch panel
· Brushless frequency motor with simpler construction, enables more reliability, longer life and quiet operation.
· Electric lid lock, ideal over-speed and imbalance protection.
· A wide range of rotors for different application choices
Technical Specification | ||||||||
Max. Speed | 5000rpm | |||||||
Speed Accuracy | 20r/min | |||||||
Max. RCF | 4730xg | |||||||
Max. Capcity | 4×250ml | |||||||
Timer Range | 0~99min | |||||||
RPM/RCF Convert | Yes | |||||||
Noise(dB) | ≤58dBA | |||||||
Temperature | Normal | |||||||
Acc/Dec | 10 Kinds | |||||||
Voltage (V/Hz) | AC 220V/110V, 50Hz/60Hz | |||||||
Size(W×D×H) | 570mm×400mm×320mm | |||||||
Net Weight(kg) | 35kgs |
- Matchable Rotors for Choice
Rotor Type | Max Volume | Max Speed | Max RCF | Model No. | P/N |
Swing Out Rotor | 4×250ml(Round Cup) | 4000rpm | 2880xg | C1AA | C1AA-1404 |
Swing Out Rotor | 4×250ml(Square Cup) | 4000rpm | 2830xg | C1AA | C1AA-1413 |
Swing Out Rotor | 4×1×50ml | 5000rpm | 4730xg | C1AA | C1AA-1408 |
Swing Out Rotor | 4×1×100ml | 5000rpm | 4730xg | C1AA | C1AA-1409 |
Swing Out Rotor | 4×2×50ml | 4000rpm | 2950xg | C1AA | C1AA-1410 |
Swing Out Rotor | 4×4×15ml | 4000rpm | 2950xg | C1AA | C1AA-1411 |
Swing Out Rotor | 4×6×15ml | 4000rpm | 2950xg | C1AA | C1AA-1412 |
Swing Out Rotor | 4×8×10/7/5ml | 4000rpm | 2580xg | C1AA | C1AA-1416 |
Swing Out Rotor | 4×4×10/7/5ml | 4000rpm | 2580xg | C1AA | C1AA-1417 |
Swing Out Rotor | 4×10×10ml | 4000rpm | 2880xg | C1AA | C1AA-1413 |
Swing Out Rotor | 4×12×7ml | 4000rpm | 2760xg | C1AA | C1AA-1414 |
Swing Out Rotor | 4×12×5ml | 4000rpm | 2480xg | C1AA | C1AA-1415 |
Angle Rotor | 4×50ml | 5000rpm | 2520xg | C1AA | C1AA-1128 |
Angle Rotor | 4×100ml | 5000rpm | 2630xg | C1AA | C1AA-1123 |
Angle Rotor | 6×50ml | 5000rpm | 2850xg | C1AA | C1AA-1121 |
Angle Rotor | 6×100ml | 5000rpm | 3130xg | C1AA | C1AA-1125 |
Angle Rotor | 12×15ml | 5000rpm | 3080xg | C1AA | C1AA-1119 |
Angle Rotor | 12×50ml | 5000rpm | 3860xg | C1AA | C1AA-1130 |
Angle Rotor | 24×15ml | 5000rpm | 3500xg | C1AA | C1AA-1127 |
Microplate Rotor | 2×3×48 Well | 4000rpm | 2300xg | C1AA | C1AA-1203 |
Microplate Rotor | 2×2×96Well | 4000rpm | 2310xg | C1AA | C1AA-1202 |
